Our Product
Thermal Inkjet Printer With Conveyor
Conveyors are mainly classified into belt conveyors, screw conveyors, bucket elevators, roller conveyors, metering conveyors, plate chain conveyors, mesh belt conveyors, and chain conveyors. The special standard conveyor for inkjet printers uses a relatively simple belt conveyor and is made of high anti-static PVC industrial belt high anti-static ability.
The fuselage is made of stainless steel, and is equipped with an electronic governor with automatic speed measurement and speed stabilization circuit functions to match the high-quality motor, so that the whole machine has high stability. The application of the product is in transportation and coding of medicine, cosmetics, food, electronic products, auto parts, tobacco, chemical, steel and pipe industries. The inkjet printer conveyor is mainly used to convey glass bottles, plastic bottles, metal, plastic bags, cartons, cartons, labels, etc., which is convenient for inkjet printers or laser machines to continuously print production dates, batch numbers, anti-counterfeiting marks, patterns. Moreover, different specifications can be customized according to user requirements and also provide customized services for various non-standard conveyors including more bandwidth, more carrying capacity and satellite conveyors.
Standard technical parameters for the Conveyor:
| # | Conveying speed: | Maximum carrying weight: | Motor power: | Rated voltage: | Weight | Conveyor belt length: | Conveyor belt width: | The height of the plane from the ground: | Packing size |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0-28m/min (adjustable) | 20Kg | 60W | 220V(110V)/50Hz(60Hz) | 18kg | 1500mm | 200mm | 750mm | 1530x250x200(mm)(LxWxH) |
Advantages:
-
✔
The electrical system is mainly composed of three-phase aluminum hoop motor geared motor and speed controller. The motor has a wide range of speed regulation (0-28m/min), and runs stably with low noise.
- ✔
The printing auxiliary baffle is standard, and the position of the baffle can be adjusted, which is convenient for users to adjust the printing position and improve production efficiency.
- ✔
Threaded adjustable bottom brackets are installed on the legs to facilitate user leveling. Accessories such as grippers can be added to meet the specific needs of customers.
- ✔
We are providing the coding auxiliary stands for fixing the inkjet printer, which are divided into floor-standing stands and small stands. All can be fixed on-line or hand held inkjet printers.

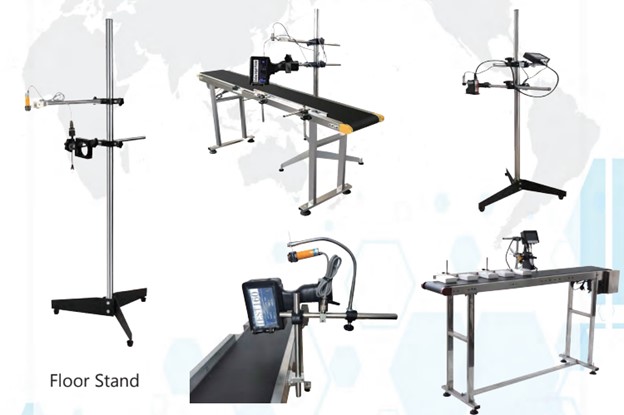

Floor Stand
The large floor-standing stand can easily adjust the stand position, and is generally used for the fixation of hand-held inkjet printers.

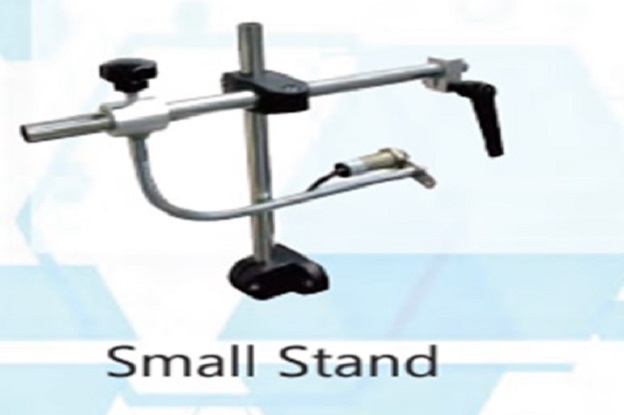

Small Stand
The small stand has a compact structure, flexible installation, and can be easily installed on the conveyor or other packaging equipment.
